Enertia Ballistic Testing
Dec.12, 2012

Gunsmoke Range, College Station, Texas 12Dec12



First round with single 5 . x 6 .” thickness panel used in housing construction for energy efficient homes.
1. Gunsmoke Shooting range.
2. Distance 10 yards.
3. Calm, clear day, Temp 48 F.
4. Brazos County Sheriff’s office doing the shooting.

Slide 1


Pistols first:

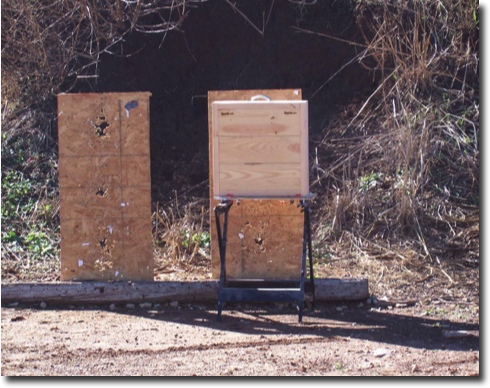

Single panel of 5 . x 6 .” construction material.
10 yards distance.
Stacks Image 21163

Slide 2



Single panel of c 5 . x 6 .” construction material.
10 yards distance.

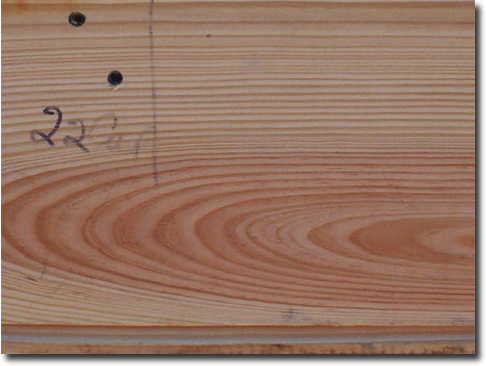

22 caliber pistol- no through penetration of panel.
Stacks Image 21211

Slide 3


Stacks Image 21268

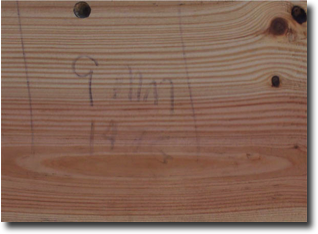

Single panel of 5 . x 6 .” construction material.
10 yards distance.
9 mm pistol- no through penetration of panel.
Stacks Image 21288

Slide 4


Stacks Image 21321

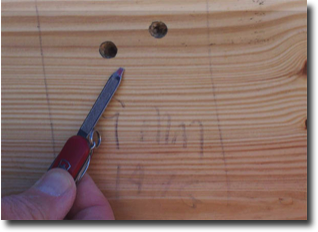

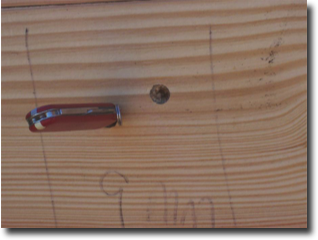

Single panel of 5 . x 6 .” construction material.
10 yards distance.
9 mm pistol- no through penetration of panel.
Stacks Image 21331

Slide 5


Stacks Image 21359

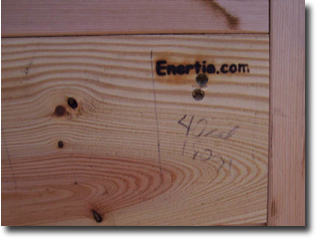

Single panel of 5 . x 6 .” construction material.
10 yards distance.

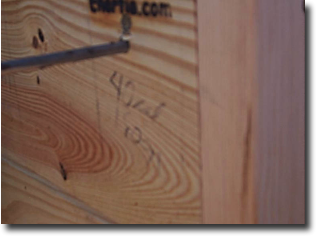

40 caliber pistol- no through penetration of panel.
Stacks Image 21369
Stacks Image 21381

Slide 6


Stacks Image 21420
Single panel of 5 . x 6 .” construction material.
10 yards distance.
45 caliber pistol- no through penetration of panel.
Stacks Image 21425
Stacks Image 21432

Slide 7

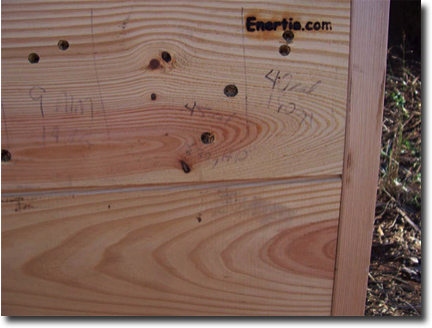

Single panel of 5 . x 6 .” construction material.
10 yards distance.
9 mm, 40 cal, and 45 cal pistols- no through penetration of panel.
Summary of pistol shots- all penetration of panel defeated!
Stacks Image 21536

Slide 8


Single panel of 5 . x 6 .” construction material.
10 yards distance.

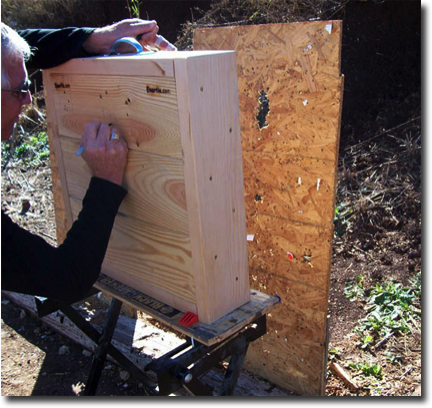

Observer marking the target after shoots fired.
Summary of pistol shots- all penetration of panel defeated!
Stacks Image 21566

Slide 9



First round with single 5 . x 6 .” thickness panel used in housing construction for energy efficient homes.
1. Gunsmoke Shooting range.
2. Distance 10 yards.
3. Calm, clear day, Temp 48 F.
4. County Sheriff’s office doing the shooting.
Pistols first: ENERTIA PANEL DEFEATED ALL TESTED ROUNDS.

Slide 10

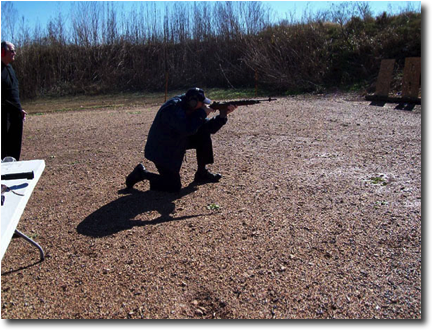

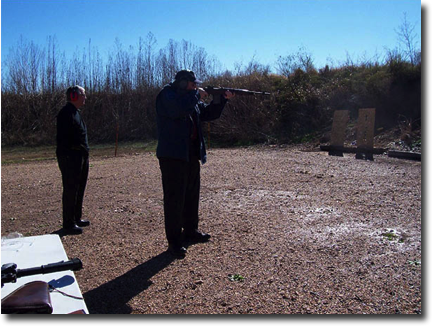

Rifles next: Sherriff’s Deputy, shooting an M-14.
Stacks Image 21633
Stacks Image 21647

Slide 11


Stacks Image 21668
Single panel of 5 . x 6 .” construction material.
10 yards distance.
5.56 mm round, M-4 rifle-penetrated entire thickness.
Stacks Image 21673
Stacks Image 21675

Slide 12

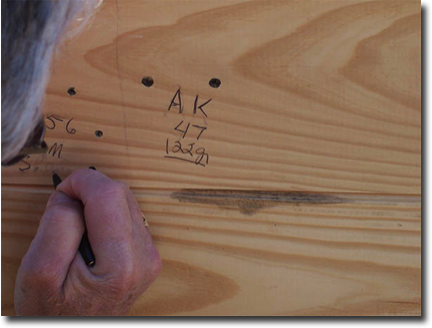

Single panel of 5 . x 6 .” construction material.
10 yards distance.
7.62mm round, AK-47 rifle-penetrated entire thickness.
Stacks Image 21700

Slide 13

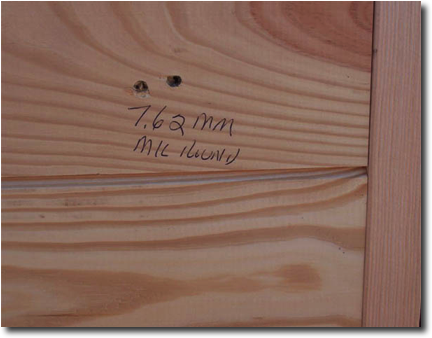

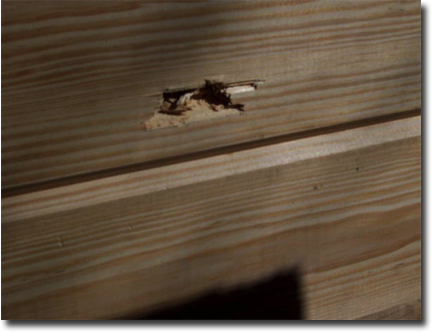

Single panel of 5 . x 6 .” construction material.
10 yards distance.
7.62mm round, AK-47 rifle- penetrated entire thickness.
Stacks Image 21727
Stacks Image 21725

Slide 14


Single panel of 5 . x 6 .” construction material.
10 yards distance.

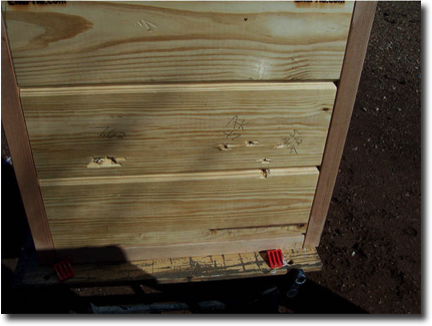

Backside of target panel.
5.56mm, 7.62mm round, AK-47 rifle, 7.62 mm M-14 rifle- penetrated entire thickness.
Stacks Image 21752

Slide 15

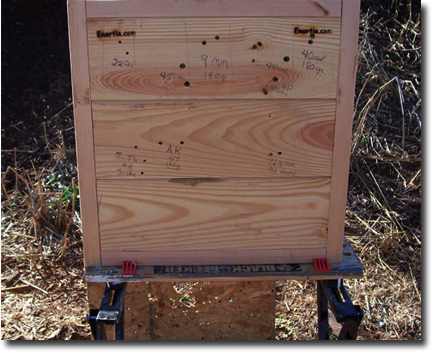

Single panel of 5 . x 6 .” construction material.
10 yards distance.
Top row of pistol shots- all successfully defended the target.
Middle row of rifle shots- 5.56 mm, 7.62mm round, AK-47 rifle, 7.62 mm, M-14 rifle- penetrated entire thickness.
Stacks Image 21777

Slide 16


Second round with two 5 . x 6 .” thickness panels with . inch of Armortex between panels.
Single thickness panel had stopped all pistol rounds so they were not tested against the double thick panels.

Slide 17

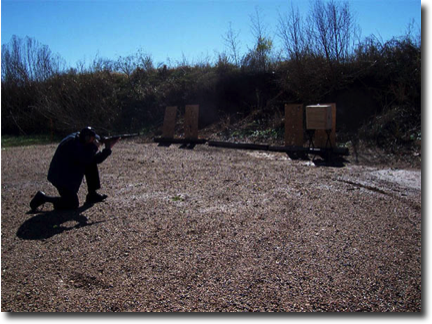

Sheriff’s officer shooting M-14 at double thickness panel.
Stacks Image 21812

Slide 18

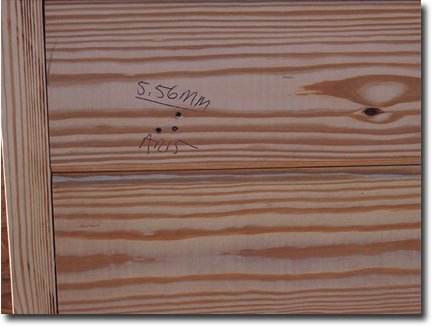

Double panel of 5 . x 6 .” construction material.
10 yards distance.
5.56 mm round, M-4 rifle- did not penetrate entire thickness.
Stacks Image 21837

Slide 19

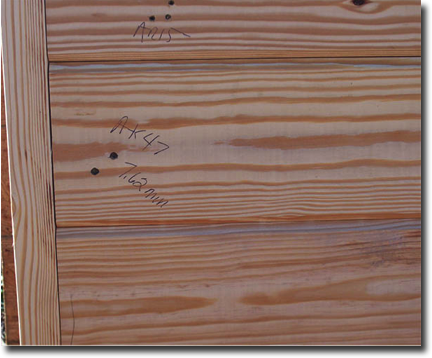

Double panel of 5 . x 6 .” construction material.
10 yards distance.
7.62 mm round, AK 47 rifle- did not penetrate entire thickness.
Stacks Image 21862

Slide 20

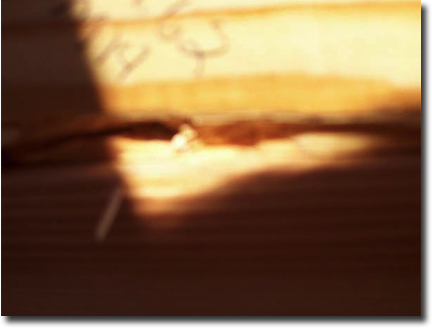

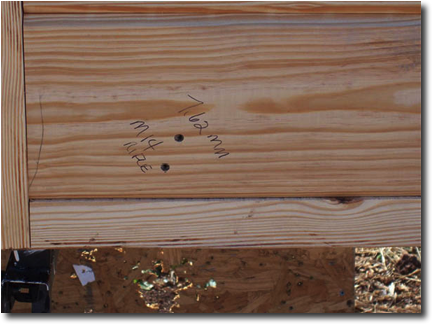

Double panel of 5 . x 6 .” construction material.
10 yards distance.
7.62 mm round, M 14 rifle- did penetrate entire thickness but did not exit back wall.
Stacks Image 21884
Stacks Image 21887

Slide 21


Stacks Image 21922

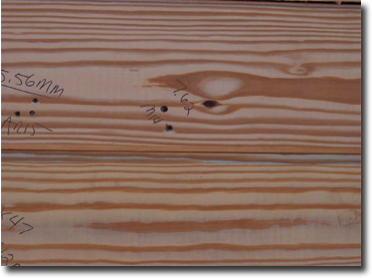

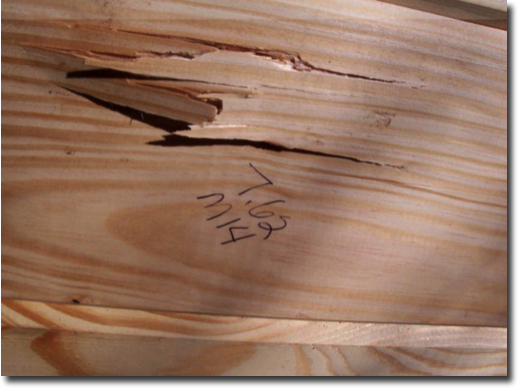

Double panel of 5 . x 6 .” construction material.
10 yards distance.

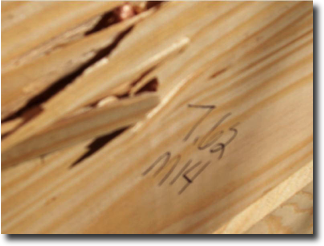

7.62 mm round, M 14 rifle- did penetrate entire thickness but did not exit back wall, round is visible at top of top right photo.
Stacks Image 21927
Stacks Image 21929

Slide 22

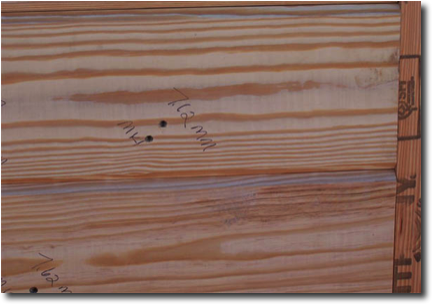

Double panel of 5 . x 6 .” construction material.
10 yards distance.

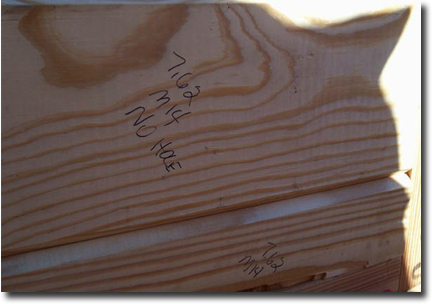

7.62 mm round, M 14 rifle- did not penetrate entire thickness when 90 degree entry.
Stacks Image 21951
Stacks Image 21954

Slide 23


Double panel of 5 . x 6 .” construction material.
10 yards distance.

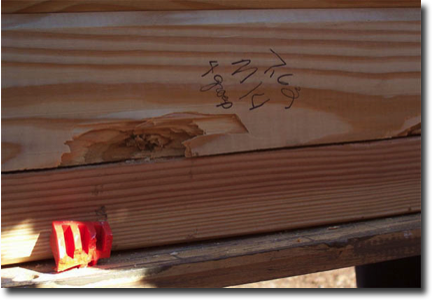

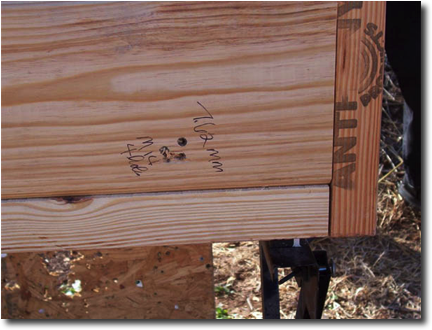

7.62 mm round, M 14 rifle- did penetrate entire thickness when angled down in group of 3.
Stacks Image 21981
Stacks Image 21984

Slide 24

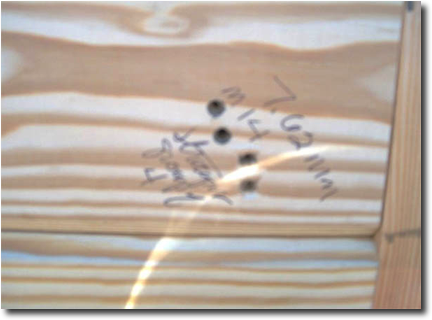

Double panel of 5 . x 6 .” construction material.
10 yards distance.
7.62 mm round, M 14 rifle- did penetrate entire thickness when shot in a group of 4.
Stacks Image 22011
Stacks Image 22014

Slide 25


Stacks Image 22044
Stacks Image 22053
7.62 mm M-14 rifle shot at 45 degree entry angle- did penetrate entire thickness!
Stacks Image 22099

Slide 26

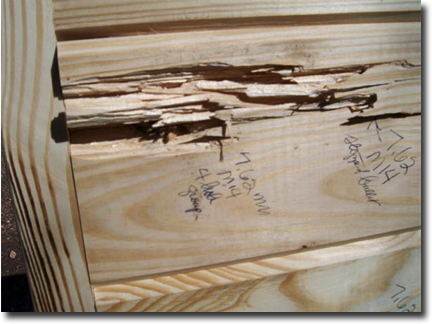

7.62 mm M-14 rifle shot at 45 degree entry angle- did penetrate entire thickness!
Stacks Image 22073
Stacks Image 22076

Stacks Image 22117
Enertia Ballistic Testing
Dec.12, 2012

Gunsmoke Range, College Station, Texas 12Dec12


Summary of shot:
1.Tested Enertia panel defeated every pistol shot with single panel.
2.Tested Enertia panel did not defeat rifle rounds with single panel.
3.Tested Enertia double panel with Armatex is very close to defeating 7.62 mm rounds typical of military action.
4.Tested Enertia double panel did defeat 5.56 mm rounds.
