ENERTIA   HOMES No Fuel? No Power? .......No Problem

BRANDYWINE 2848 - OFF the GRID in CALIFORNIA
Combination

Stacks Image 3955

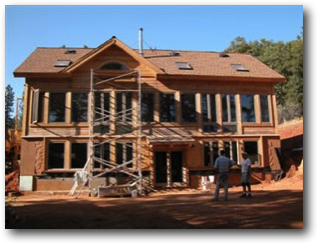

This off-the-grid Brandywine is being built by the owners on their foothill property in central California. Electricity will come from solar PV panels and a wind generator, and of course the heating and cooling will come from the unique Enertia® design of the home.

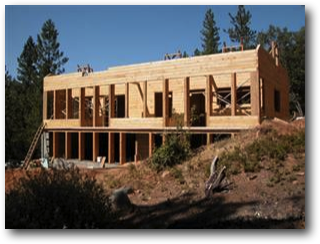

We visited this home mid-construction and then again near the end of the project
Stacks Image 3965
Stacks Image 3969
Stacks Image 3971
Stacks Image 3974
Brandywine Basement - "Built by the owners" really means exactly that in this case. They have touched and lifted every piece of this house, and even formed and poured the foundation themselves. The foundation was a challenge they would not recommend - "Let the pros do it."
Stacks Image 3980
Stacks Image 3983
Brandywine has a taller main level (one extra course more than an Equinox) so that the beams can run over the girder, giving an extra feeling of spaciousness.
Stacks Image 3989
Stacks Image 3991
Stacks Image 3994
One optional architectural feature of the Brandywine is an arched window in the Sunspace wall. On the North, in all Enertia® homes, there are windows in both the inner and outer timber walls, allowing a view of the natural beauty of the site without loss of energy.
Stacks Image 4000
Stacks Image 4002
Stacks Image 4005
Stacks Image 4007
Enertia® homes are built with glue laminated timbers all the way to the peak of the gable. The angled timber ends and beveled top timbers are pre-cut at the factory. Electrical outlet boxes are pre-mortised, and pockets for the rafters are also pre-cut.
Stacks Image 4013
Stacks Image 4015
Stacks Image 4018
Stacks Image 4020
The timbers are fastened in place with heavy-duty, self-tapping screws and a power drill. All work is done from inside the house.
Stacks Image 4026
Stacks Image 4028
Stacks Image 4031
The construction chart shows the location of each pre-cut timber. As each timber is placed, that portion of the wall is complete - no insulation, vapor barrier, sheeting, drywall, are required - although an exterior stain will protect the timbers from discoloration. Tune in again for upsdates on this project - it is going to be a spectacular home.
Stacks Image 4037

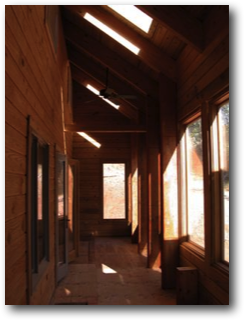

Skip ahead in time, and we visit this home as it nears completion. The large Sunspace is the engine of the home, and will be a very popular place to spend time.
Stacks Image 4044
Stacks Image 4046
Stacks Image 4049
From the Sunspace, the large glass doors lead into the open plan living/dining/kitchen areas.
Stacks Image 4053
Stacks Image 4057
Stacks Image 4059
Stacks Image 4062
Stacks Image 4064
The layout of this beautiful site leads to a driveway approach to the North side of the house. From here, we can walk around to the right (West) to see all sides of the house, which looks great from every angle.
Stacks Image 4070
Stacks Image 4073
Continuing around the house, we end up on a hill overlooking the North East corner. We'll come back for some followup pictures when the owners have moved in.
Stacks Image 4079
Stacks Image 4082
Six months have passed, and we have a chance to visit this family again. Now they are moved in and enjoying the fruits of their labor. The airlock entry on the North side opens into the open plan living room/dining/kitchen space.
Stacks Image 4088
Stacks Image 4091

The kitchen is sleek and contemporary, and meshes beautifully with the wood walls.

Stacks Image 4097
Stacks Image 4099
Stacks Image 4102
Stacks Image 4104

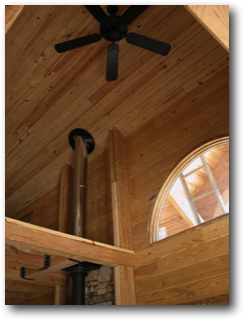

The Sunspace is a favorite place, and contains several architectural features (such as the arched window) and functional features (heavy support timbers, paddle fans, and the airspace between the rafters). It is the "engine" room of the house.
Stacks Image 4110

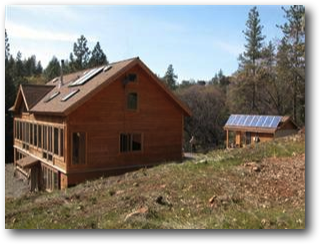

On the North side of the house is a shed that houses the energy equipment - the inverter, batteries and equipment for the photovoltaic system, and other "utilities" that allow this home to operate "off the grid" with no loss of the comforts/ammenities of modern life.
