In 1997 an Enertia Aquarius 2 home was built on family farmland in the American midwest. Through incredibly cold midwest winters, violent storms, blistering summers, it has been an icon of American Preparedness.

Now another Enertia home (right) is being built nearby.
The same technical representative from Enertia is at the site to assist with construction. We'll bring you some construction photos of this project, with thanks to the owner and builder who have shared them with us.

Stacks Image 29

Architectural Rendering of The Enertia Legend

Stacks Image 35
Stacks Image 37
Stacks Image 40
Stacks Image 42

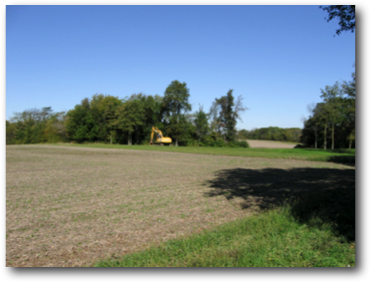

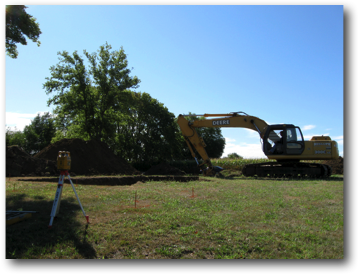

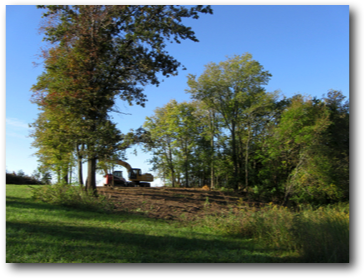

The site is a beautiful spot at the edge of a corn field.

Stacks Image 48
Stacks Image 51

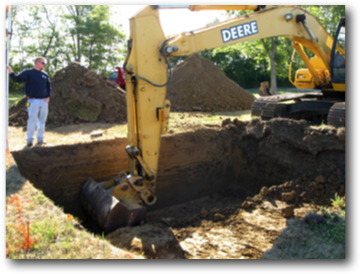

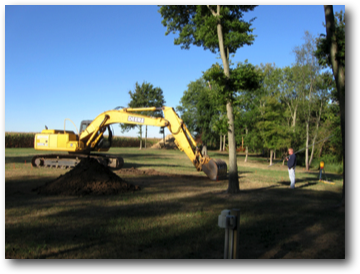

The excavation is a near perfect cut into the ground. Even the cows are interested.

Stacks Image 57
Stacks Image 59
Stacks Image 62
Stacks Image 64

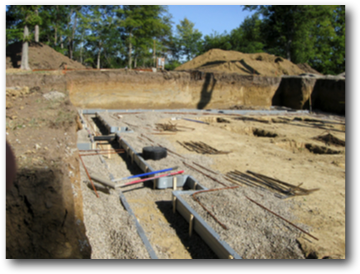

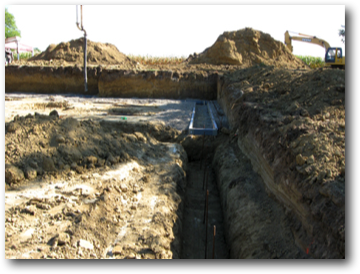

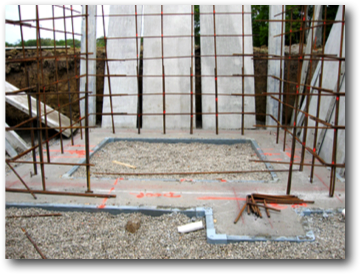

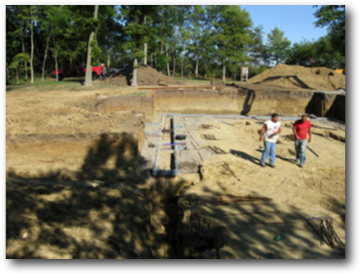

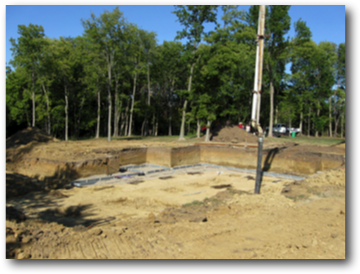

After the excavation, the forms are built for the concrete footers that will support the walls and other structural elements. Gravel is spread outside of the forms. Rebar is put in place in preparation for the concrete pour.
Stacks Image 70
Stacks Image 72
Stacks Image 74

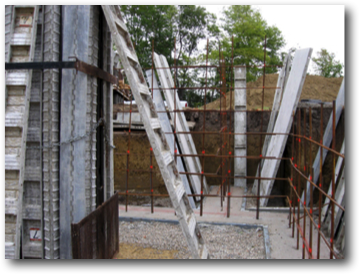

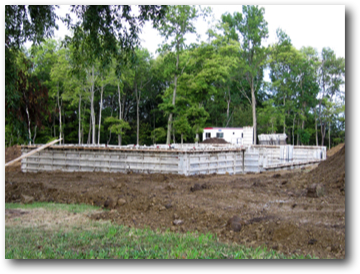

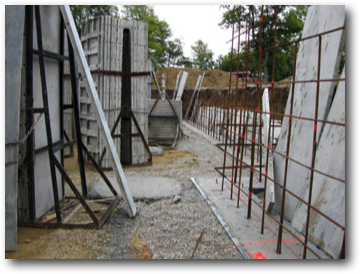

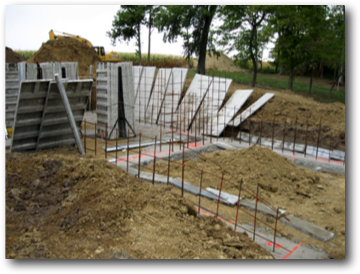

After the footers have dried, concrete forms are erected. The rebar framework will strengthen the concrete walls.
Stacks Image 78
Stacks Image 81

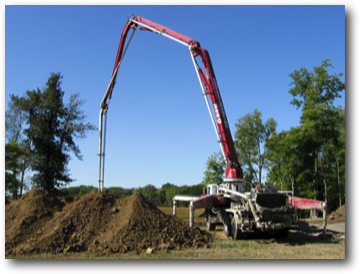

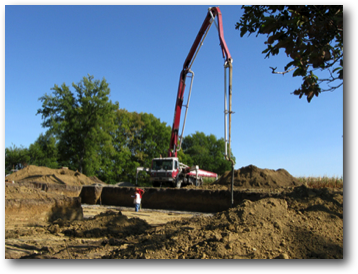

The concrete pumper can place just the right amount of concrete in just the right place, resulting in a very clean and accurate foundation pour.
Stacks Image 85
Stacks Image 87
Stacks Image 89
Stacks Image 93
Stacks Image 95

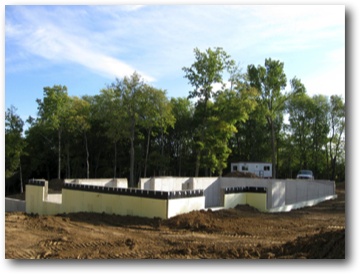

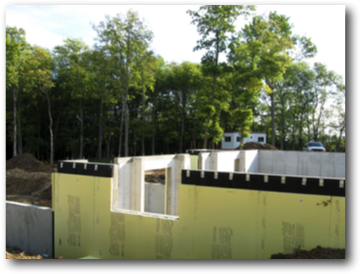

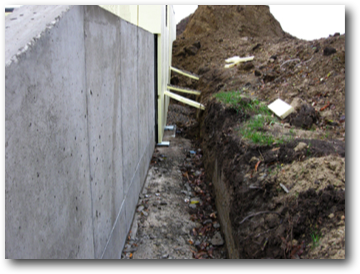

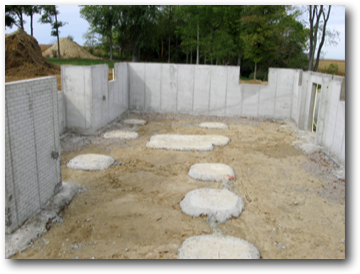

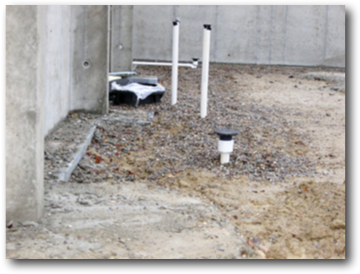

The concrete has been poured, the forms removed, and the outside of the walls are being waterproofed and insulated. Inside, the plumbing has been "roughed-in." The concrete pads (below) will support jack posts and other load paths that give structural integrity to the building.
Stacks Image 99
Stacks Image 102
Stacks Image 104
Stacks Image 106

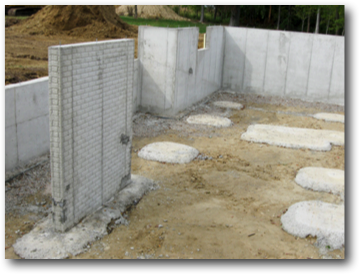

The shear wall (above) has a brick pattern pressed into it. The shear wall supports the inner South timber wall that divides the Sunspace from the inner shell living area in an Enertia® home.
Stacks Image 112
Stacks Image 114
Stacks Image 116

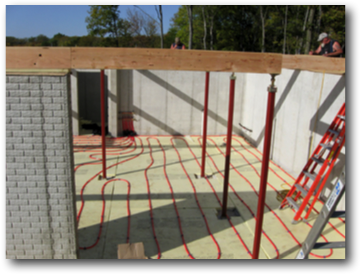

Pex tubing is laid in a special pattern to produce "zones" of radiant heat that can be controlled by the homeowner.
Stacks Image 121

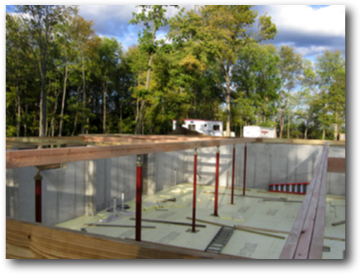

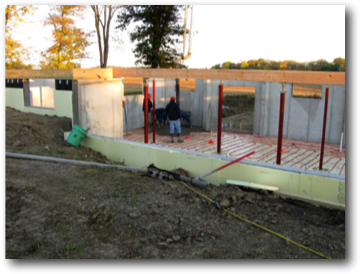

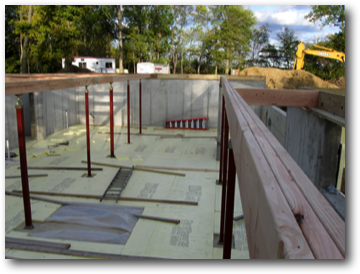

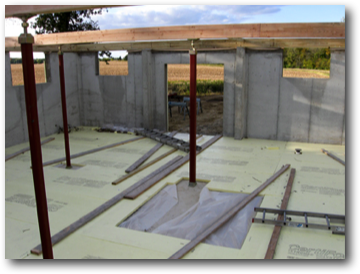

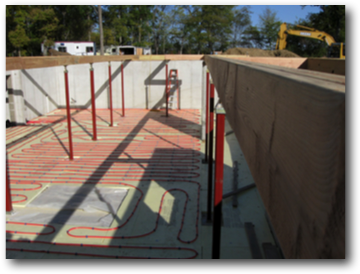

The jackposts are in place, and insulation is laid on top of gravel. This basement will have a radiant heat floor, and the insulation will minimize the leakage of heat into the ground.
Stacks Image 125
Stacks Image 127
Stacks Image 131
Stacks Image 133
Stacks Image 136
Stacks Image 138

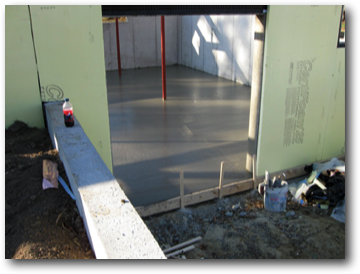

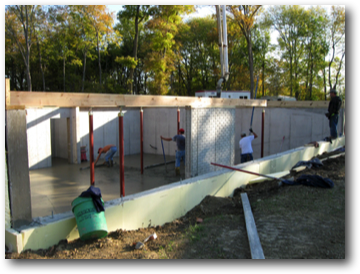

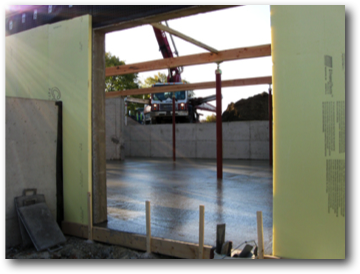

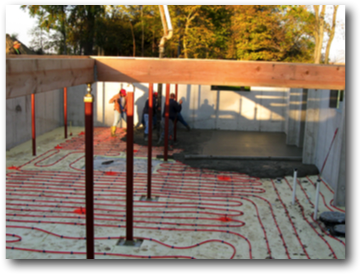

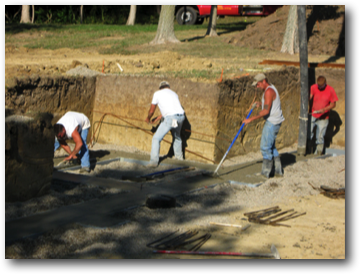

After the posts are in place and the tubing is put down, the basement slab is poured. When the tubes are filled with hot water the floor will radiate heat, and the posts are now firmly anchored.
Stacks Image 144
Stacks Image 147

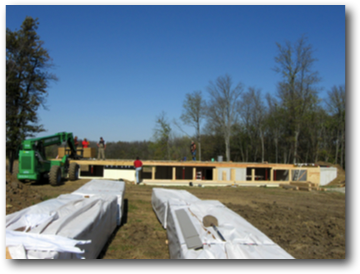

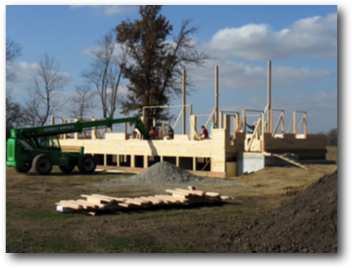

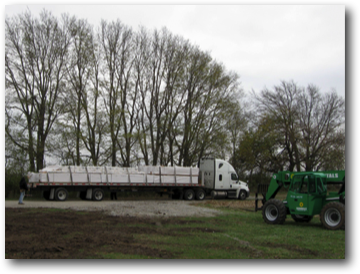

The first of three delivery trucks has arrived with the Enertia® kit. The bundles are unloaded and close to the building site.

Stacks Image 153
Stacks Image 155
Stacks Image 158
Stacks Image 160

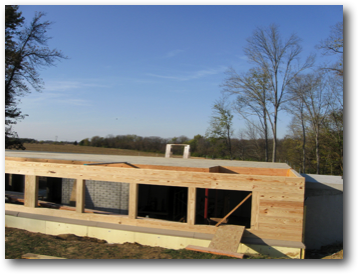

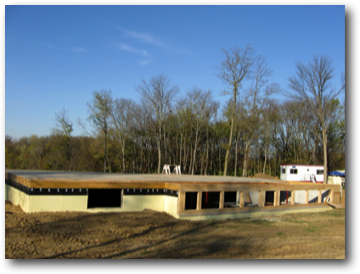

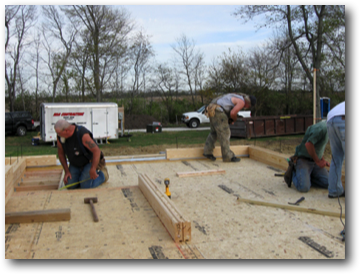

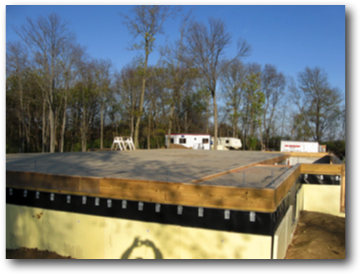

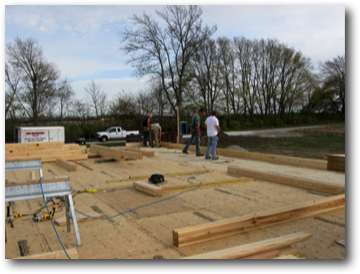

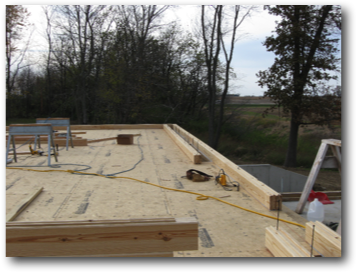

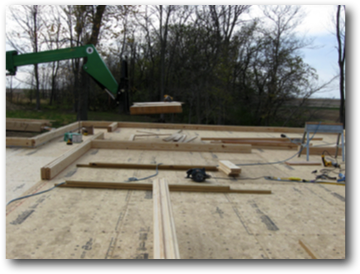

A triple band of 2x10s has been built on top of the foundation walls. Floor joists have been set within the band, and plywood is nailed on top of the joists to create the main level subfloor. The subfloor in the Sunspace will be dropped 2" to allow for a tile floor.
Stacks Image 166
Stacks Image 168
Stacks Image 171
Stacks Image 173

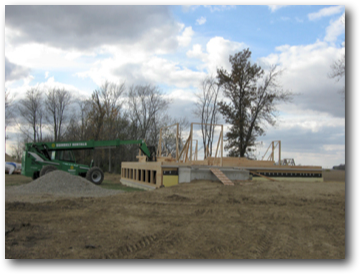

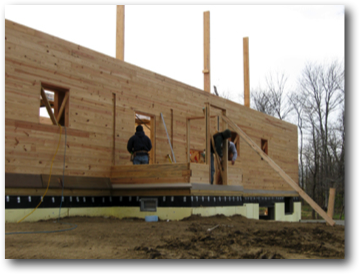

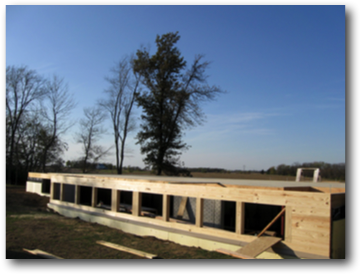

The first row of timbers (A Row) is being set in place. This keys the position of the doors and wall openings. It is nice to have a lift on the site to do some of the heavy lifting and carrying. In the lower right image you can see the start of the double North wall.
Stacks Image 179
Stacks Image 181
Stacks Image 184
Stacks Image 186
The door frames and North wall buttresses are other key elements that define the structure and keep everything in alignment. They are also set with A row. Window frames are set as the appropriate row of timbers for each window placement is reached.
Stacks Image 192
Stacks Image 195

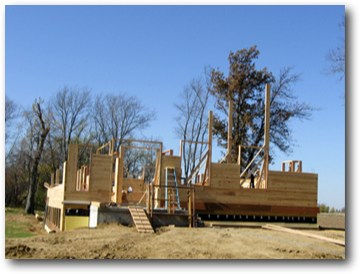

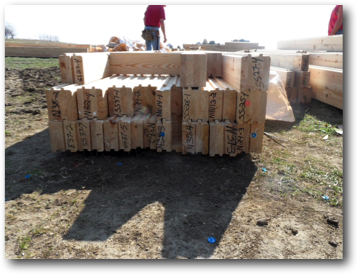

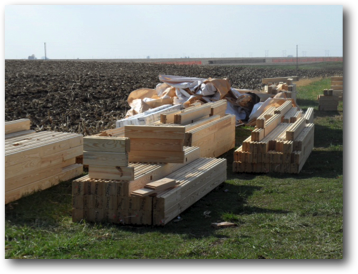

The bundles of timbers are uncovered as needed. Each timber has it's location written on the end and on top. It is essentially like putting together a big 3D puzzle - except in this case there is a chart which shows the location of each piece.
Stacks Image 201
Stacks Image 203
Stacks Image 206
Stacks Image 208

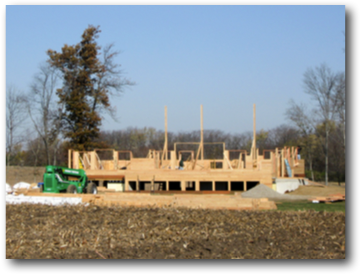

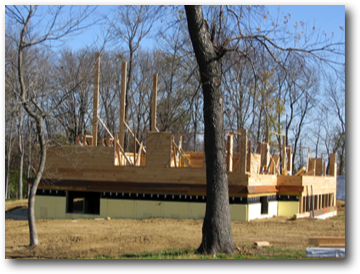

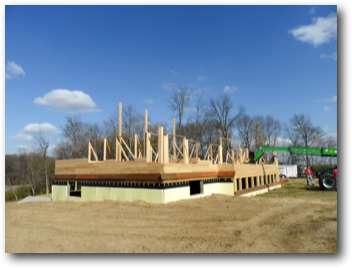

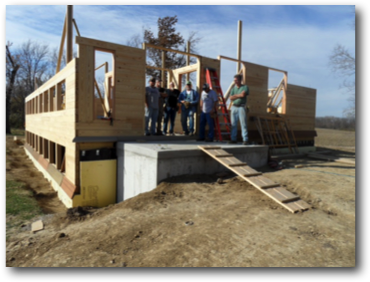

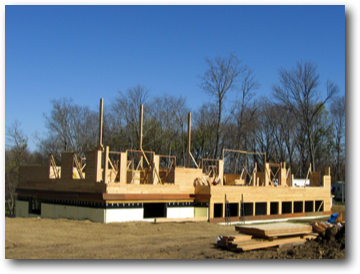

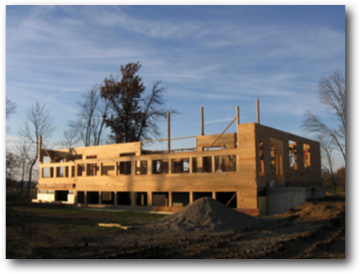

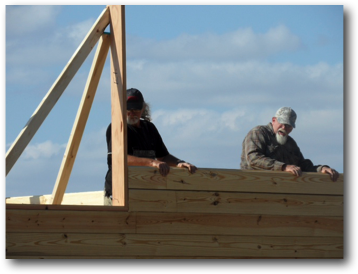

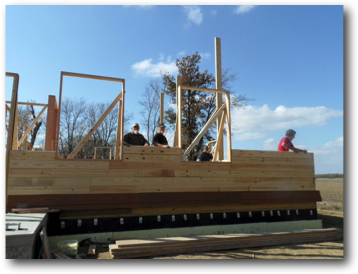

The walls rise very methodically, and the house begins to take shape.

Stacks Image 214
Stacks Image 216
Stacks Image 219
Stacks Image 221

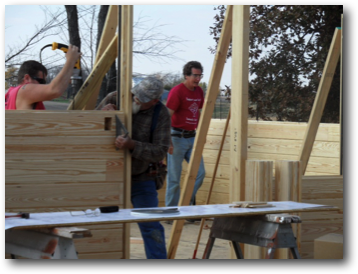

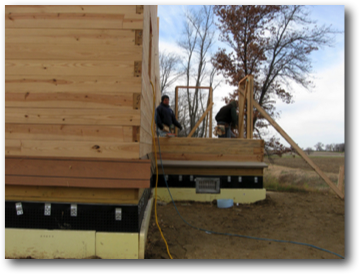

Because the timbers are pre-cut and numbered, the main tool needed on the job site is a heavy duty electric drill to drill the long self-tapping screws that hold the timbers in place.
Stacks Image 227
Stacks Image 230

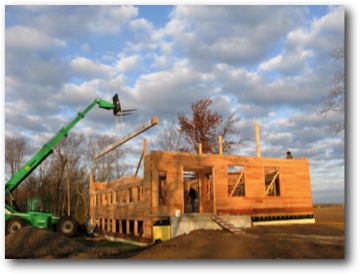

There will be a mudroom entry on the North side of the house. Later, a deck will be added.

Stacks Image 236
Stacks Image 238
Stacks Image 241
Stacks Image 243

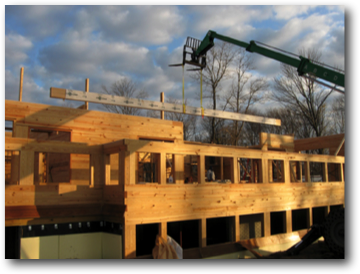

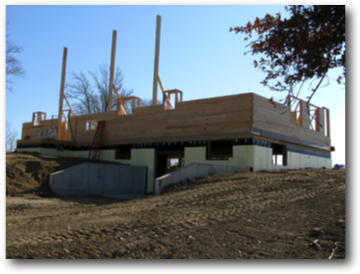

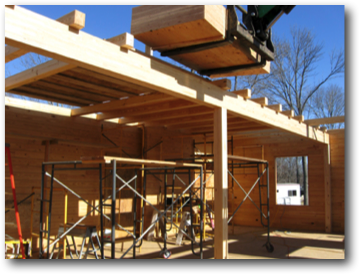

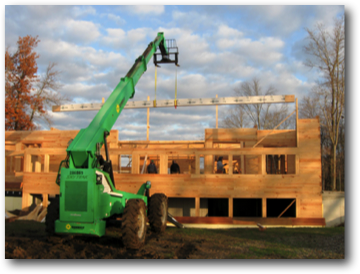

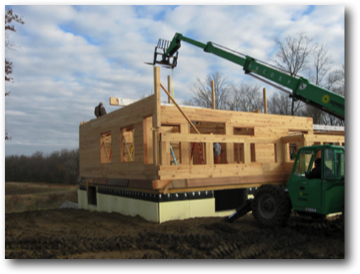

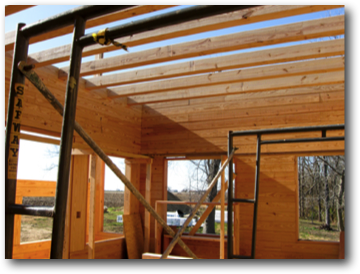

The lift really comes in handy when it is time to set the large floorbeams that support the second floor of the house.

Stacks Image 249
Stacks Image 252
After all the beams are set, plywood is nailed down as a temporary subfloor for the upper level. Later, after the house is dried in, the plywood will be removed and flooring will be installed.
Stacks Image 322

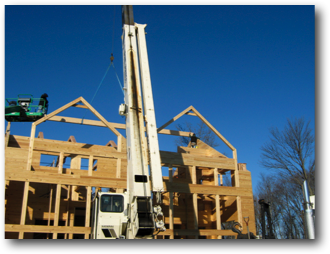

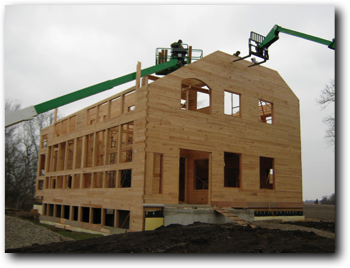

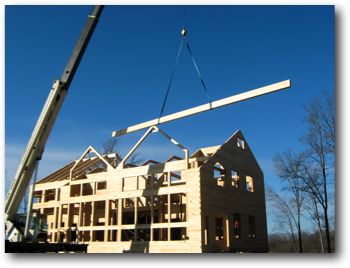

As the gables are finalized, the heavy timber roof structure begins. The long timber is a Ridge Beam that will hold the top end of the roof rafters. The crane and the lift work together to get everything in place.
Stacks Image 8739

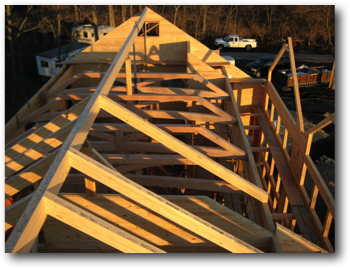

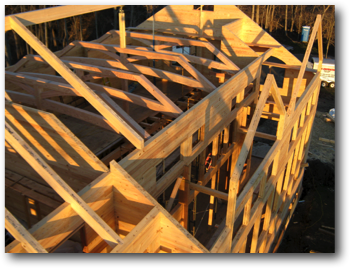

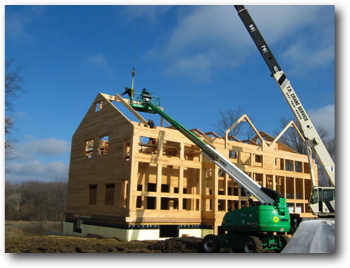

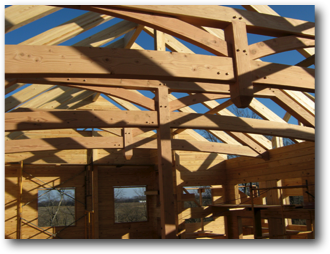

Below the rafters you can see the decorative timber trusses that will support the ceiling and add incredible visual warmth to the Great Room.
Stacks Image 8729
Stacks Image 8733
Stacks Image 8737
Stacks Image 8830

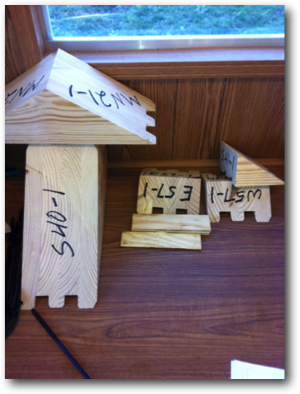

The walls of an Enertia® home are Gluelam timbers right to the top of the gable peaks. Above (left) are the top timbers for each of the gables.

Stacks Image 8813
Stacks Image 8833
Stacks Image 8835

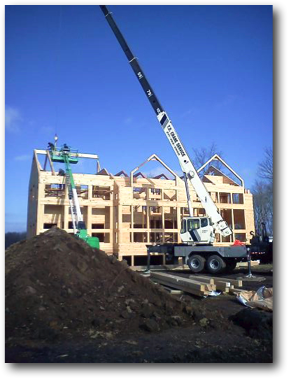

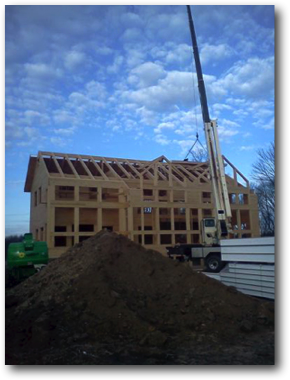

With careful planning, the crane that is used to set the roof timbers, ridge and rafters can also be used to set the SIPS panels that are first layer of roofing.
Stacks Image 8844

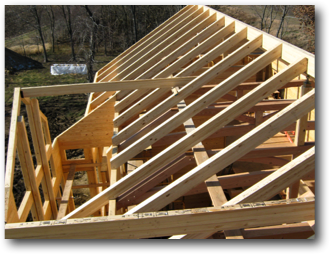

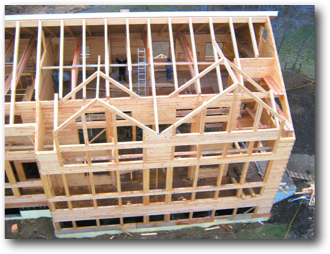

When all the rafters have been set, the Enertia® kit is completed. The optional trusses are also in place. Next the SIPS roof panels are added. In the image above (left) the North side has had its panels installed. With a crane, this goes quickly.
Stacks Image 8848
Stacks Image 8842
Stacks Image 8838

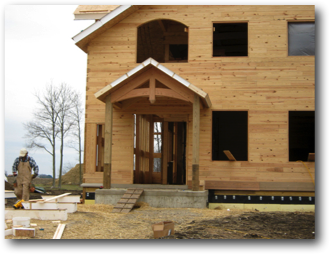

Meanwhile, the East entryway has been completed.
Stacks Image 258
Stacks Image 261

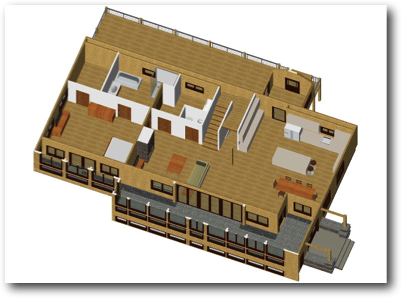

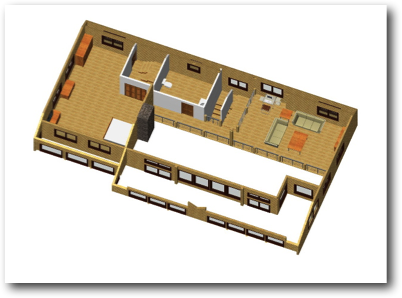

These Axon renderings show the layout of the main and upper levels of the home.

We set up a time lapse camera at the job site. You can see the construction video as this kit goes up one timber at a time.
Stacks Image 272
