WILDCAT CANYON - A CUSTOM ENERTIA® HOME in CALIFORNIA
Construction Album

Stacks Image 6536

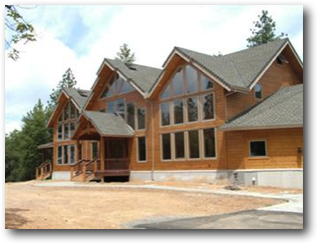

Enertia® homes come in all shapes and sizes. This is a large custom home in Northern California with an attached garage and many architectural features, including "Californias," which are the projecting rooflines at the front of the house.
Stacks Image 6543
Stacks Image 6546
It's a big day when the kit arrives on via tractor trailer(s). The owner will have rented a forklift for the day to unload the bundles and place them on a flat place near the job site.
Stacks Image 6552
Stacks Image 6555

In this large custom home, some components are too big for even a forklift.

Stacks Image 6561
Stacks Image 6564
The foundation is usually complete by the time the kit arrives. Radiant heat tubes in the slab of the lower level (and between the floor joists under the main floor) will provide back-up heat.
Stacks Image 6570
Stacks Image 6573

Waterproofing the exterior of the foundation is a good "sweat-equity" project for the homewoner.

Stacks Image 6579
Stacks Image 6582

The subfloor begins with a triple band around the outside edge to support the first timber.

Stacks Image 6588
Stacks Image 6591

2x10 joists fill in between the band and girders.

Stacks Image 6597
Stacks Image 6600

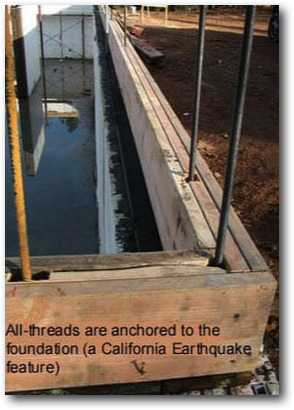

The last step of the subfloor is to put down the plywood decking.

Stacks Image 6606
Stacks Image 6609

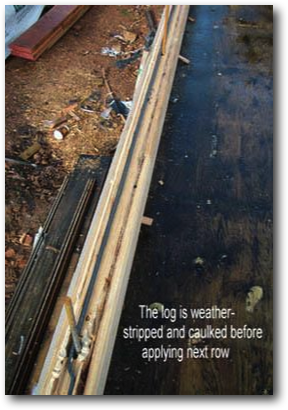

This kit includes a "lower level option," with timbers provided for the lower level South wall. In the pictures below the South front, subfloor, and first row of main floor timbers have all been completed.
Stacks Image 6615
Stacks Image 6618

Door frames are provided with the kit. In addition to framing the doors, they provide "stiffeners" and "levelers" for the rising walls.

Stacks Image 6624

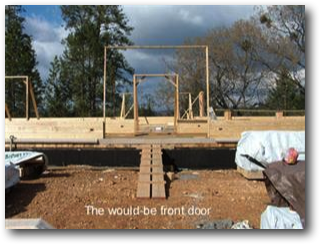

This will be the front door, leading into the atrium. For the owner, this time when the foundation work is complete and the kit is well underway is a time of great satisfaction !

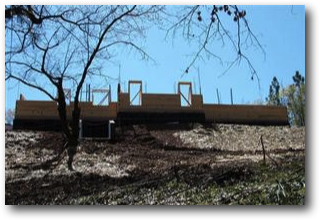

The Wildcat Canyon kit is underway and the double North wall is progressing quickly.
Stacks Image 6634
Stacks Image 6638
Stacks Image 6641

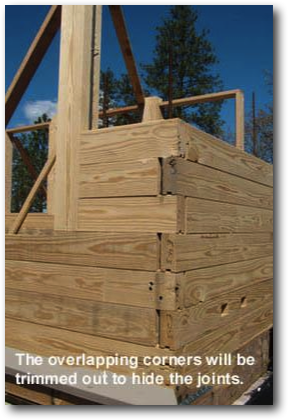

Following the kit construction chart, timbers are stacked between the door frames, and the walls take shape.

Stacks Image 6647
Stacks Image 6649
Stacks Image 6652

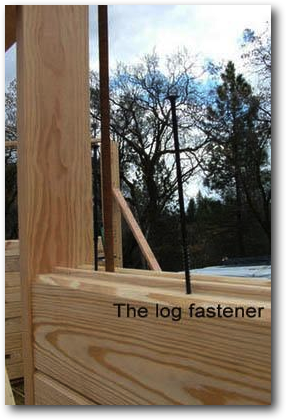

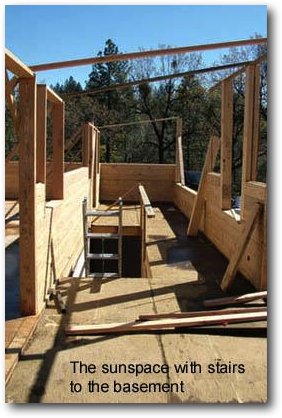

Special self-drilling screws fix each glue-lam timber in place. This design has the stairs to the lower level in the sunspace. The sunspace, or atrium, is the driving force of the home, and will become everyone's favorite room.
Stacks Image 6658
Stacks Image 6660
Stacks Image 6663

All timbers are set from the inside of the house.

Stacks Image 6669
Stacks Image 6671
Stacks Image 6674
Stacks Image 6676
The kit also includes window frames, which also need to be braced. Once the timbers are set all the way to the top of the first floor, the posts and girders that support and frame the second floor are set.
Stacks Image 6682
Stacks Image 6684
Stacks Image 6687
Stacks Image 6689

The floor beam system is so beautiful.

Stacks Image 6695
Stacks Image 6698

Temporary decking is applied over the floor beam system to proved a work platform for the upper level construction.

Stacks Image 6704

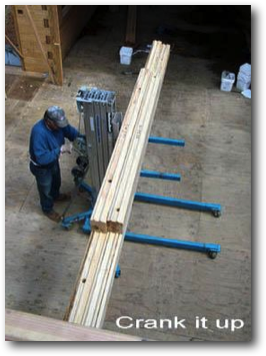

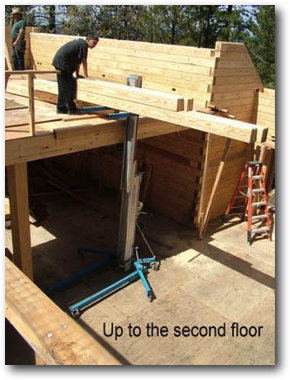

This rented lift is a huge help when it is time to hoist timbers to the second floor.
Stacks Image 6709
Stacks Image 6711
Stacks Image 6715
Stacks Image 6718

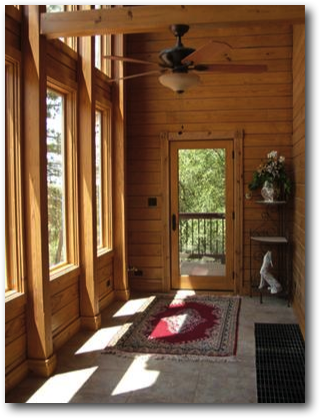

This Enertia® home has lots of South windows in the entry Atrium. These windows gather solar energy in the winter when the sun is low. At all times of the year they supply natural light to the interior.
Stacks Image 6724
The atrium, or sunspace, runs the length of the south side of the house. Enertia® homeowners use the atrium for informal dining, growing plants, reading writing, conversation, enjoying the local scenery and other relaxing activities.
Stacks Image 6731

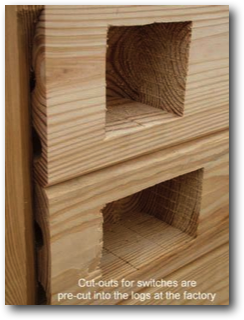

Wiring an Enertia home is made easier by the mortising and pre-drilling done at the factory.
Stacks Image 6736
Stacks Image 6740
Stacks Image 6742
Stacks Image 6745
Stacks Image 6747

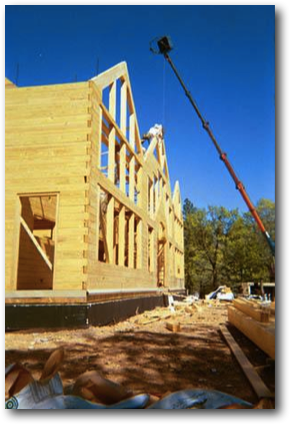

Solid wood rises all the way to the peak of the gable.

Stacks Image 6753
Stacks Image 6756

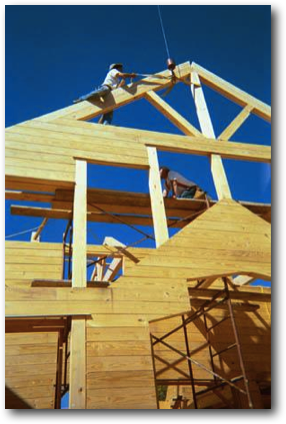

Heavy timber framing is set by a crane, with some help from the crew.

Stacks Image 6762
Stacks Image 6764
Stacks Image 6767
This custom-designed home has many intricate shapes and cuts, adding up to a home with a lot of architectural interest.
Stacks Image 6773
Stacks Image 6775
Stacks Image 6778
Stacks Image 6780
This home is rich with heavy timber architectural features. Heavy timber roof trusses were ordered from Euclid Timberframing, a company that specializes in timberframing. These decorative trusses are mortise-and-tenon construction, assembled with pegs.
Stacks Image 6786
Stacks Image 6788
Stacks Image 6791
The roof trusses are so beautiful that, like most Enertia homeowners, the owners wished that the roof could be left open to the sky.
Stacks Image 6797
Stacks Image 6799

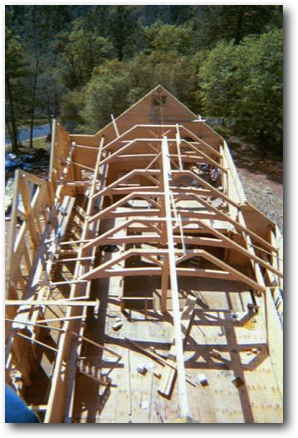

With a crane to do the heavy lifting, the trusses are set in record time.
Stacks Image 6804
Stacks Image 6806
Stacks Image 6810
Stacks Image 6812
Stacks Image 6814
Stacks Image 6817
Stacks Image 6819
With some planning, the same crane that sets the trusses can set the panels.
Stacks Image 6825
Stacks Image 6828
The trusses and SIPS are in place. At the peak, the height of the attic is about 4'6". Once the Lo-mit reflective coating is painted onto the lower surfaces of the outer roof panels, the attic will be cool, despite the summer heat.
Stacks Image 6834
Stacks Image 6837

The garage roof is built with regular 2x trusses and sheeted with plywood. Still to come - Garage Roof, Windows, Interior.

Stacks Image 6843
Stacks Image 6846

Several months later, the home is complete. Join us for a Photo Tour.
